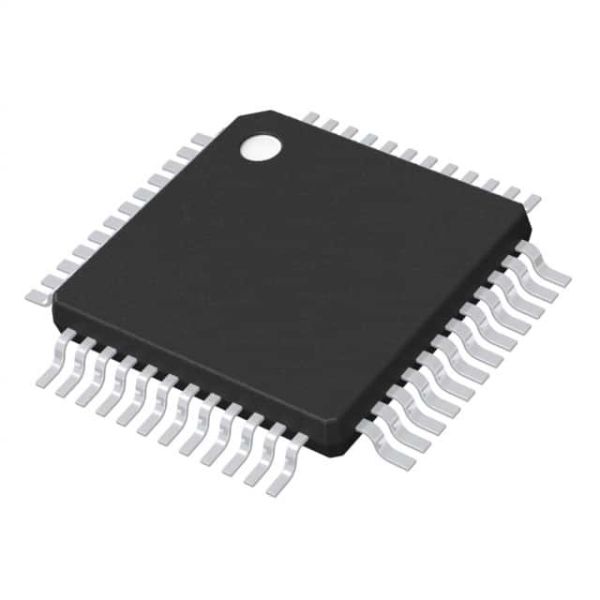

2.4V-3.6V MCU Microcontroller Unit STM32F030C8T6 48LQFP STMicroelectronics

Name: 24V36V MCU Microcontroller Unit STM32F030C8T6 48LQFP STMicroelectronics
Brand: STMicroelectronics
Price: 1 USD

Brand Name : STMicroelectronics

Model Number : STM32F030C8T6

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : ARM® Cortex®-M0

Core Size : 32-Bit Single-Core

Speed : 48MHz

Connectivity : I²C, SPI, UART/USART

Peripherals : DMA, POR, PWM, WDT

Number of I/O : 39

Program Memory Size : 64KB (64K x 8)

Program Memory Type : FLASH

EEPROM Size : -

RAM Size : 8K x 8

Voltage - Supply (Vcc/Vdd) : 2.4V ~ 3.6V

Data Converters : A/D 12x12b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 48-LQFP

Supplier Device Package : 48-LQFP (7x7)

Contact Now

STM32F030C8T6 IC MCU 32BIT 64KB FLASH 48LQFP STMicroelectronics

Product Details

Description

The STM32F030x microcontroller incorporates the high-performance ARM Cortex™-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 64 Kbytes of Flash memory and up to 8 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os.

Features

Microcontroller with ARM® 32bit Cortex™-M0 CPU, frequency up to 48MHz in 48 pin LQFP package
CRC calculation unit, 64Kb flash, 8KB SRAM
2.4V to 3.6V voltage range, power-on/power down reset (POR/PDR)
4 to 32MHz crystal oscillator, internal 40KHz RC oscillator
39 GPIO, 5-channel DMA controller
One 12 channels, 12bit synchronized ADC
1 (16bit) advanced control, 5 (16bit) general purpose and 1 (16bit) basic timer
Calendar RTC with alarm and periodic wakeup from stop/standby
SPI, I2C and USART communication interfaces
Serial wire debug (SWD)

Application

Application control
User interfaces
Handheld equipment
A/V receivers
Digital TV
PC peripherals
Gaming platforms

Specifications

Attribute	Attribute Value
Manufacturer	STMicroelectronics
Product Category	Microcontrollers
Series	STM32 F0
Packaging	Tray
Unit-Weight	0.006409 oz
Mounting-Style	SMD/SMT
Tradename	STM32
Package-Case	48-LQFP
Operating-Temperature	-40°C ~ 85°C (TA)
Supplier-Device-Package	*
Number-of-I-O	39 I/O
Speed	48MHz
EEPROM-Size	-
Core-Processor	ARMR CortexR-M0
RAM-Size	8K x 8
Program Memory	FLASH
Peripherals	DMA, POR, PWM, WDT
Connectivity	I2C, SPI, UART/USART
Voltage-Supply-Vcc-Vdd	2.4 V ~ 3.6 V
Core-Size	32-Bit
Program-Memory-Size	64KB (64K x 8)
Data-Converters	A/D 12x12b
Oscillator-Type	Internal
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	2.4 V to 3.6 V
Interface-Type	I2C SPI
Core	ARM Cortex M0
Processor-Series	ARM Cortex-M
Data-Bus-Width	32 bit
Package-Case	LQFP-48
Maximum-Clock-Frequency	48 MHz
Number-of-ADC-Channels	16 ADC Channels
Input/output	39 I/O
Data-RAM-Size	8 kB
Number-of-Timers-Counters	7 Timer
ADC-Resolution	12 bit
Data-RAM-Type	SRAM

Descriptions

ARM? Cortex?-M0 STM32F0 Microcontroller IC 32-Bit 48MHz 64KB (64K x 8) FLASH

MCU 32-bit ARM Cortex M0 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP Tray

ARM Microcontrollers - MCU Value-Line ARM MCU 64kB 48 MHz
